Automatic Three Phase Energy Meter Test Bench with Class 0.05 Accuracy

Product Categories

Guangzhou GENY Electric Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Automatic Three Phase Energy Meter Test Bench with Class 005 Accuracy
Brand: GENY
Price: 1 USD

Brand Name : GENY

Model Number : YC1893D-ICT-48

Certification : ISO, CE

Place of Origin : CHINA

MOQ : 1PCS

Price : negotiation

Payment Terms : L/C,T/T,D/P

Supply Ability : 30pcs per month

Delivery Time : 30 days after order confirmed

Packaging Details : plywood case

Accuracy class of ICT : 0.05 / 0.01

Power Source : YCS-103-2500

Standard Meter : SZ03A-K6 / SZ03A-K8 (customized)

Test voltage output(Phase-Neutral) : 3x(24V~288V)(or customized)

Frequency Adjustment Range : Max. 3x1000VA

Resolution : Better than 0.01% of full scale value of range

Setting accuracy : Better than 0.05% at the final range value

Contact Now

Description:

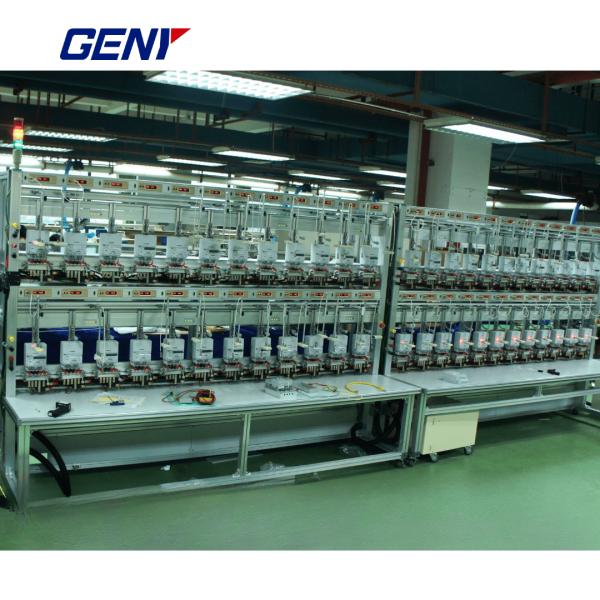

The Geny Three Phase Meter Test Bench is a high-accuracy energy meter test system designed for mechanical and electronic meters. It supports automatic, semi-automatic, and manual testing for 3P4W, 3P3W, and 1P2W configurations.
With ICT integration, it enables precise current and voltage measurement links, ensuring stable and repeatable results. The system supports active and reactive power testing, starting and creeping tests, and offers automatic rotor positioning for mechanical meters.
Built with aluminum alloy, it’s lightweight, durable, and corrosion-resistant. The Windows-based software provides modules for error, harmonic, and influence tests, while RS232 and Ethernet ports ensure easy data connection.
Ideal for utility companies, metrology bureaus, and meter manufacturers, the Geny meter test bench delivers class 0.05 accuracy, long warranty, and excellent power stability for professional energy meter calibration.

Automatic Three Phase Energy Meter Test Bench with Class 0.05 Accuracy
