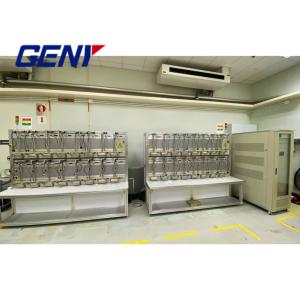

YC1893D ThreePhase Energy Meter Testing System Custom OEM and ODM Services

Brand Name : GENY

Model Number : YC-1893D

Certification : ISO, CE

Place of Origin : CHINA

Payment Terms : L/C, T/T, D/P

Supply Ability : 100/Year

Model NO. : YC1893D-6 Three Phase Meter Test System

Electric Equipment : Three-phase Three-wire

Type : Energy Meter

Customized : Customized

Contact Now

YC1893D ThreePhase Energy Meter Testing System Custom OEM and ODM Services

Technical specification

The three-phase meter test system with ICTs offers multiple positions for testing up to 40 meters and features an accuracy class of 0.02%. It is equipped with a multi-serial port communication system for parallel communication, making it ideal for smart meter testing.

Power Supply

Voltage 3x230 / 400 V ±10%, 50 / 60 Hz ±2 Hz
Frequency 50 Hz ±15%
Power capacity > 6 kVA
Power efficient(at full load) ≥85%
Ambient temperature -10 °C -- +40 °C
Relative humidity 35% - 85%

Power Source

Voltage
Test voltage output (Phase-Neutral) 3x(24 – 300 V)
Power of the voltage output 3×1500VA
Resolution Better than 0.01% of full scale value of range
Setting accuracy Better than 0.05% at the final range value
Stability Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load < 0.01%
Distortion factor < 0.3% for linear resistance load
Harmonics 2nd – 41st free programmable
Current
Test current output 1 mA – 120 A
Power of the current output 3×2000VA
Resolution Better than 0.01% of full scale value of range
Setting accuracy Better than 0.05% at the final range value
Stability Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load < 0.01%
Distortion factor < 0.3% for linear resistance load
Harmonics 2nd – 41st free programmable
Phase angle
Range 0 -- 360°
Resolution 0.01°
Setting accuracy 0.1°
Frequency
Range 45 Hz – 65 Hz
Resolution 0.01 Hz

Features

  • Supports automatic, semi-automatic, and manual testing of mechanical, electronic mechanical, and electronic meters.
  • Built with lightweight, durable, and corrosion-resistant aluminum alloy.
  • Automatic rotor mark positioning for mechanical meters to improve efficiency.
  • Synchronized scanning head movement for simplified control.
  • Fully automated tests include:
    • Accuracy (active, reactive, and apparent energy)
    • Repeatability, creep (no-load), starting current, and dial tests
    • Meter constant and influence quantity tests (voltage, unbalance, frequency, harmonics, reverse phase)
    • Calibration of lower-accuracy reference meters
    • Pre-warming, dips, interruptions, and tampered conditions testing
    • Sub-harmonics and odd harmonics per IEC standards
    • Synchronous measurement of meter constants
  • Includes overload, short circuit, and open current circuit protection.

YC1893D ThreePhase Energy Meter Testing System Custom OEM and ODM Services

YC1893D ThreePhase Energy Meter Testing System Custom OEM and ODM Services

For more information, you can visit our website:http://www.genymetertestequipment.com/
