Theory Three Phase Electronic Meter YC98G Terminal 3 Phase Electric Meter

Name: Theory Three Phase Electronic Meter YC98G Terminal 3 Phase Electric Meter
Brand: GENY
Price: 1 USD

Certification : ISO

Supply Ability : 5 Piece / Month

Payment Terms : L/C, T/T, D/P

Brand Name : GENY

Model Number : YC98G

Place of Origin : CHINA

Model NO. : YC98G

Display : Digital

Installation : Direct Connected

Usage : Multi-Functional Energy Meter, Watt-Hour Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter

Electric Equipment : Three-phase Three-wire

Theory : Electronic Meter

Power Meter Connection : Terminal

Measured Signal : Continuous Wave

Type : Energy Meter

Customized : Customized

Weight : 11.5kg

Transport Package : Carton

Specification : 245mm X 162mm X 60mm

HS Code : 9030849000

Port : Guangzhou, China

Contact Now

Theory Portable Three Phase Electronic Meter with Terminal Power Meter Connection

Product Description

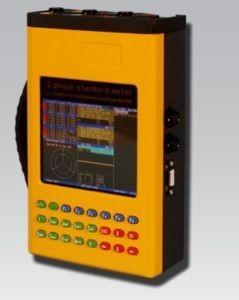

The YC98G is a portable working standard meter with human oriented design to verify active / reactive three phase meter (3 or 4 wires) and single-phase meter, which accuracy class from 0.1 to 0.05, suitable for field testing.

One phase two wire
Three phase four wire
Three phase three wire
Highlights

Measuring mode: gives information about the parameters of the line under test, like:
- Phase voltage, current, angle
- Active power, reactive power, apparent power.
- Phase and three-phase power factor.
- Phase angle of phase to phase voltage
- Phase angle of phase to phase current
- Frequency.
Vector diagram: draw the line vector diagram
Waveform: show the wave form of voltage and current
Harmonics: make a graphic and numeric analysis of the THD. (2nd~51st)
Meters test: Performs the test to the meters. The data field configurable in this function is the serial number, the meter type, the constant, the divisor factor (for HF), the type of test and cycles.
CT ratio test: get CT ratio by synchronously testing primary and secondary current of CT
Wiring check: judge the wiring right or wrong automatically
Energy accumulating: accumulate active and reactive energy in a setting time, used for meter's dial test
Clamp CT self-calibration: check whether the clamp CT is accurate and re-calibration.
Test data storage: can store 1000 data groups. Data include meter type, serial number, constant, error, date etc.
It has a RS232 interface to communication with a PC
Firmware can be upgraded through PC by users themselves
Can connect with external printer, keyboard, barcode scanner
In dial test, user can input active, reactive, apparent energy, and calculate three kinds of energy error: active, reactive, apparent.
Pulse and manual switch and key control can be used to check the pulsing error.

Product Parameters

Specification for YC98G - 0.1%

em	Measurement range	Effective resolution	Accuracy (%)	Others
voltage	5 - 450 V	0.001 V	0.05%	2 ranges(1:4)
Current CT	0.05 - 20 A	0.0002 A	0.05%	3 ranges(1:10)
Clamp CT	0.01 - 100 A	0.001 A	0.15%	3 ranges(1:10)
frequency	45-65 Hz	0.001 Hz	0.01 Hz
Active power	0~±Umax X Imax	0.0001 W	0.10%
	0~±Umax X Imax	0.0001 W	0.20%	With CT Clamp
Reactive power	0~±Umax X Imax	0.0001 Var	0.20%
	0~±Umax X Imax	0.0001 Var	0.30%	With CT clamp
Apparent power	0~±Umax X Imax	0.0001 VA	0.20%
Active energy			0.10%
			0.20%	With CT clamp
Reactive energy			0.20%
			0.30%	With CT clamp
Energy Constant	180000imp/kWh / 1800imp/kWh / 18imp/kWh*
Power Factor	0~±0.9999	0.0001	±0.01
Phase angle	0 ~ 359. 999º	0.001 º	±0.01 º
Working environment	-10~+55ºC, 15~85% RHD,altitude:-10~3500 m
Temperature Influence	≤25ppm/ºC(U/I, ≤15ppm /ºC(others)
Frequency Influence	≤25ppm / Hz
Pulse interface	Input (2 channels, PLi1, PLi2)
	Low level≤2V, high level≥5V
	Output (2 channels, PLo-1 active power, PLo-3 reactive power)
	Low level≤0.5V, high level≥11.5V

Communication interface	Asynchronous serial transmission: RS232, 9600bps, 1N8.
Power supply1	Power from U1, Un tested circuit terminals: 85~450V/≯35VA			From tested circuit
Power supply 2	Power from the AC socket: 85~450V/≯35VA
Power supply3	Battery type: Li polymer batter, size: 110mmX51mmX16mm,			Inner Li-battery
Power supply3	Nominate output voltage: 7.2V, Capacity: 5000mAh			Inner Li-battery
Dimension	Instrument: 245mm X 162mm X 60mm
	Carry case: 559mm X 351mm X 229mm
Weight	Weight of the main instrument: 1.7kg
	Total set weight: 11.5kg

Specification for YC98G - 0.05%

Item	Measurement range	Effective resolution	Accuracy (%)	Others
voltage	5 - 450 V	0.001 V	0.02%	2 ranges(1:4)
Current CT	0.05 - 20 A	0.0002 A	0.02%	3 ranges(1:10)
Clamp CT	0.01 - 100 A	0.001 A	0.15%	3 ranges(1:10)
frequency	45-65 Hz	0.001 Hz	0.01 Hz
Active power	0~±Umax X Imax	0.0001 W	0.05%
	0~±Umax X Imax	0.0001 W	0.20%	With CT Clamp
Reactive power	0~±Umax X Imax	0.0001 Var	0.10%
	0~±Umax X Imax	0.0001 Var	0.30%	With CT clamp
Apparent power	0~±Umax X Imax	0.0001 VA	0.10%
Active energy			0.05%
			0.20%	With CT clamp
Reactive energy			0.10%
			0.30%	With CT clamp
Energy Constant	180000imp/kWh / 1800imp/kWh / 18imp/kWh*
Power Factor	0~±0.9999	0.0001	±0.005%
Phase angle	0 ~ 359. 999º	0.001 º	±0.005 º
Working environment	-10~+55ºC, 15~85% RHD,altitude:-10~3500 m
Temperature Influence	≤10 ppm/ºC(U/I, ≤ 15 ppm /ºC(others)
Frequency Influence	≤20 ppm / Hz
Pulse interface	Input (2 channels, PLi1, PLi2)
	Low level≤2V, high level≥5V
	Output (2 channels, PLo-1 active power, PLo-3 reactive power)
	Low level≤0.5V, high level≥11.5V

Communication interface	Asynchronous serial transmission: RS232, 9600bps, 1N8.
Power supply1	Power from U1, Un tested circuit terminals: 85~450V/≯35VA			From tested circuit
Power supply 2	Power from the AC socket: 85~450V/≯35VA
Power supply3	Battery type: Li polymer batter, size: 110mmX51mmX16mm,			Inner Li-battery
Power supply3	Nominate output voltage: 7.2V, Capacity: 5000mAh			Inner Li-battery
Dimension	Instrument: 245mm X 162mm X 60mm
	Carry case: 559mm X 351mm X 229mm
Weight	Weight of the main instrument: 1.7kg
	Total set weight: 11.5kg

Specification for YC98G - 0.05%

Item	Measurement range	Effective resolution	Accuracy (%)	Others
voltage	5 - 450 V	0.001 V	0.02%	2 ranges(1:4)
Current CT	0.05 - 20 A	0.0002 A	0.02%	3 ranges(1:10)
Clamp CT	0.01 - 100 A	0.001 A	0.15%	3 ranges(1:10)
frequency	45-65 Hz	0.001 Hz	0.01 Hz
Active power	0~±Umax X Imax	0.0001 W	0.05%
	0~±Umax X Imax	0.0001 W	0.20%	With CT Clamp
Reactive power	0~±Umax X Imax	0.0001 Var	0.10%
	0~±Umax X Imax	0.0001 Var	0.30%	With CT clamp
Apparent power	0~±Umax X Imax	0.0001 VA	0.10%
Active energy			0.05%
			0.20%	With CT clamp
Reactive energy			0.10%
			0.30%	With CT clamp
Energy Constant	180000imp/kWh / 1800imp/kWh / 18imp/kWh*
Power Factor	0~±0.9999	0.0001	±0.005%
Phase angle	0 ~ 359. 999º	0.001 º	±0.005 º
Working environment	-10~+55ºC, 15~85% RHD,altitude:-10~3500 m
Temperature Influence	≤10 ppm/ºC(U/I, ≤ 15 ppm /ºC(others)
Frequency Influence	≤20 ppm / Hz
Pulse interface	Input (2 channels, PLi1, PLi2)
	Low level≤2V, high level≥5V
	Output (2 channels, PLo-1 active power, PLo-3 reactive power)
	Low level≤0.5V, high level≥11.5V

Communication interface	Asynchronous serial transmission: RS232, 9600bps, 1N8.
Power supply1	Power from U1, Un tested circuit terminals: 85~450V/≯35VA			From tested circuit
Power supply 2	Power from the AC socket: 85~450V/≯35VA
Power supply3	Battery type: Li polymer batter, size: 110mmX51mmX16mm,			Inner Li-battery
Power supply3	Nominate output voltage: 7.2V, Capacity: 5000mAh			Inner Li-battery
Dimension	Instrument: 245mm X 162mm X 60mm
	Carry case: 559mm X 351mm X 229mm
Weight	Weight of the main instrument: 1.7kg
	Total set weight: 11.5kg
